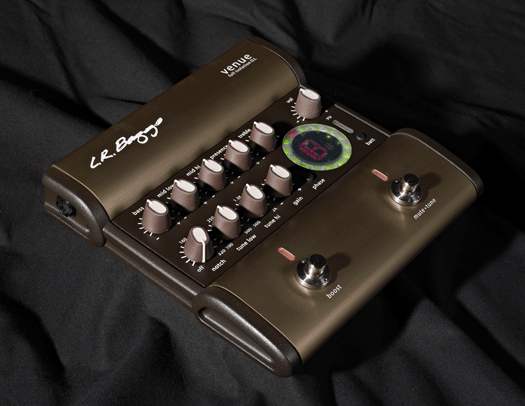

VENUE D.I.   Acoustic Preamp/Foot Pedal

LR Baggs nya Venue D.I. bygger vidare på LR Baggs populära Para Acoustic D.I. Box. Detta är den första akustiska gitarr preamp som kombinerar en Direktbox, Acoustic EQ, Boost samt Tuner i en och samma box. Fler funktioner är bypass, notchfilter mot feedback, linedriver som kompenserar signalbortfall till först/mixer, effektloop, faskontroll, battericheck samt groundlift. EQ´n har bas, low, mid, high- & mid-sweep, presence och treble. Boost upp till 9dB. Allt ineslutet i en kompakt stabil box med en otoligt snygg design. Levereras i en behändig vävklädd ask med handtag.

Specifikationer:
•  All discrete Acoustic Guitar Preamp
•  High-end audio transformer coupled  XLR for maximum isolation
•  EQ med bas, low, mid, high- & mid- sweep, presence och treble.
•  Justerbar Gainkontroll
•  Boostswitch, justerbar upp till 9 dB
•  Kromatisk Tuner med switchbar Mute/Tune funktion
•  Notchfilter mot feedback
•  Fas switch
•  Battericheck kontroll
•  Linedriver som kompenserar signal- bortfall till förstärkare/mixer
•  Bypass
•  Effektloop
•  Groundlift

LR-Venue-DI   Venue DI Acoustic Preamp    Pris: 3.995:-

SESSION D.I.

Acoustic Guitar Preamp + DI
with Saturation and Compression EQ

STUDIO TOOLS FOR THE STAGE

ANALOG SATURATION
Often used by studio engineers in post-production, saturation adds warmth, dimension, and pleasing harmonics while smoothing the signal for an enhanced mix. The Session DI’s proprietary saturation is voiced specifically for the acoustic guitar and transports studio analog warmth and inspiring playability to the stage.

COMPRESSION EQ
Unlike standard compression that can squash the entire range of your signal, the Session DI’s Comp EQ features 3 narrowly focused bands of compression that tame common problematic frequencies and uncover the voice of your guitar. The low, mid, and high frequency compressors are essentially “touch-sensitive” EQs that respond in real-time to your dynamics. The harder you strum, the more they compress and vice versa.

  Specifikationer:
•  Analog Saturation enhances warmth and harmonic content
•  Compression / EQ smoothes out common problem frequencies
•  Garret Null notch filter tames resonant feedback
•  Variable high-pass filter attenuates extraneous low frequencies
•  VU meter visually optimizes gain for passive and active pickups
•  Ground lift switch effectively eliminates ground-loop noise
•  All discrete signal path with XLR and quarter inch outputs
•  48V phantom power, 9V battery or 9V DC powering options
•  Rugged enclosure constructed of aluminum, steel and ABS plastic
•  Mute footswitch for ¼" and XLR outs
•  Includes custom LR Baggs carryingcase

LR-Session-DI   Session DI Acoustic Preamp    Pris: 3.595:-

STADIUM D.I.   Electric Bass DI

STUDIO-GRADE BASS DI FOR THE STAGE

Originally developed by the bass playing engineers at LR Baggs for their own use, the Stadium Electric Bass DI infuses your signal with a blend of studio-grade circuitry and a vibrant palette of unique, tone shaping tools. Composed of carefully selected, “top shelf” components, the all-discrete electronics provide a level of fidelity that rivals even the most sought after studio DIs. Then engage the effects to unveil an expansive range of colorful tones shaped by just a few powerful and easy-to-use controls. Built in a rugged enclosure constructed of aluminum, steel, and ABS plastic, the Stadium DI ensures over-the-top reliability for life on the road. Hand assembled in California.

TONE SHAPING TOOLS

GROWL
Unlike overdrives that employ full-range distortion, the Growl saturates a focused range of low frequencies, enhancing warmth and creating harmonically rich overtones without too much breakup. The effect compliments dynamics and is responsive to even the lightest touch, providing just the right amount of edge to cut through the mix. For added versatility, a paired Drive button pushes the Growl to a full-range overdrive.

COMP EQ
The Comp EQ features 3 bands of compression for bringing evenness to your tone while retaining the natural feel of your playing dynamics. The low, mid, and high frequency compressors are essentially “touch-sensitive” EQs that respond in real time as you play. The harder you dig in, the more they compress and vice versa.

ATTACK
This highly specific EQ affects a unique, medium sized bandwidth to adjust the attack of the strings for a wide range of tones, covering all playing styles. Sweep left for warmer, muted jazz tones or right for added clarity and a punchier attack.

   Specifikationer:
•  Growl control adds low end distortion for thickness and rich, harmonic content
•   Drive button pushes the Growl to a full overdrive
•  Comp EQ enhances the feel of playing while evening out your tone
•  Attack sweeps between a wide range of warmth, clarity and
    everywhere in between
•   Fat switch boosts 150Hz +3dB or +6dB for a fuller, rounded tone
•  VU meter visually optimizes gain for passive and active pickups
•  All-discrete signal path with XLR and quarter inch outputs
•  48V phantom power, 9V battery or 9V DC powering options
•  Pad boosts or cuts XLR out (-10dBV or +4dBu) to meet the needs of the PA
•  Ground lift switch effectively eliminates ground-loop noise
•  Rugged enclosure constructed of aluminum, steel and ABS plastic
•  Includes custom LR Baggs carryingcase

LR-STadium-DI   Stadium Electric Bass DI    Pris: 3.595:-

PARA ACOUSTIC D.I.

Sedan den introducerades för 15 år sedan har LR Baggs PARA D.I. blivit ett måste på scener och inspelningsstudior över hela världen. Det är en högkvalitets direktbox som är supertyst, robust och pålitlig och har precis de rätta kontrollerna för att mejsla fram det bästa soundet ur din akustiska pick-up. Den har 5-bands EQ med treble, presence, 2 oktavers svepbar mid, bas och justerbart notchfilter. 24dB juterbar gain samt fasswitch. LR Baggs patentskyddade ”Quasi-passive” EQ krets är helt transparent och låter dig finjustera signalen utan att förlora tonen till skillnad mot andra direktboxar och equalizers på marknaden.

Sammanfattning:

•  5-bands EQ med justerbart notchfilter
    och svepbar midrange

•  Justerbar Gain som fungerar med de
   flesta passiva eller aktiva pick-uper

•  Fas switch

•  Fantom matning

•  XLR och ¼” tele outputs

•  Serie effekts loop TRS insertpoint

Specificationer:

Storlek: 142 x 92 x 48 mm
Vikt: 411 g
Batteri: 9 V
Batteritid: 200+ timmar
Gain: +2dB till +24dB
Phantom power: 24-48V
Input Impedance: 10 megaohm
Output Impedance: 600 ohm

LR PARA DI     Para D.I.      Pris: 2.795:-

ALIGN SERIES
ACOUSTIC PEDAL SUITE

Created specifically for acoustic musicians, the Align Series integrates studio processing tools,
a high-fidelity preamplifier with foundational tone-shaping EQ, our proprietary acoustic reverb,
and the most pristine, all-discrete active DI we have ever engineered.
This highly versatile pedal series expands your tonal palette with a vast range of control
that’s uniquely tailored to complement and enrich the voice of your acoustic instruments.

ALIGN SERIES  ACTIVE D.I.

All-Discrete Ative DI
with Pedalboard-Friendly Functionality

Building upon decades of experience creating studio-quality gear for the stage, the Align Active DI is the embodiment of LR Baggs engineering at its highest level and uses the most pristine circuitry we have developed in a DI. Our all-discrete design preserves the authenticity of your sound while providing high headroom for a wide range of signals. Equally at home on a pedalboard or standalone, we are excited to offer a DI with such a high degree of fidelity and functionality.

    Specifikationer:
•  XLR and ¼" outputs
•  Pad boosts or cuts XLR out to meet the needs of the PA
•  Ground lift switch effectively eliminates ground-loop noise
•  Thru/Out switch for added output versatility
•  Phase inversion for best sound and feedback control
•  Mute footswitch for accessible control of your signal when switching
   instruments or in between sets
•  9V battery, 9V DC, or 48V phantom powering options

LRAlign-DI   Align ACTIVE DI Pedal    Pris: 2.495:-

Acoustic Preamplifier With 6-Band Eq
and Anti-Feedback Notch Filter

Based on the circuit of the esteemed Para Acoustic DI, the Align Equalizer combines our signature, high-graded FET gain stage with powerful tone-shaping EQ that injects richness and balance to any acoustic pickup signal. A 6-band EQ shapes the frequencies we found most useful for improving acoustic guitar pickups with the flexibility needed to cover other acoustic instruments effectively. Multi-instrumentalists can incorporate dedicated EQ pedals for level matching a variety of instruments and tailoring a specific EQ for each one.

    Specifikationer:
•  6-band EQ for meticulous tone sculpting
•  Variable high-pass filter for best sound and feedback control
•  Phase inversion for both passive and active pickups
•  3 position gain switch for easy level control
•  Garret Null notch filter tames resonant feedback

LRAlign-EQ   Align EQUALIZER Pedal    Pris: 2.495:-

Acoustic Pedal Featuring Saturation And Compression

Inspired by the LR Baggs Handcrafted Video Sessions and our experience in some of Nashville’s great studios, the Align Session brings our signature studio sound to your live rig. Session circuitry enhances your acoustic pickup and imparts the rich sonic character that you’d expect from an experienced audio engineer using some of the world’s finest studio gear. We’ve captured this studio magic and put it into a compact, easy-to-use acoustic pedal that will transform your live sound.

Often used by studio engineers in post-production, saturation adds warmth, dimension, and pleasing harmonics while smoothing the signal for an enhanced mix. The Session’s proprietary saturation is voiced specifically for the acoustic guitar and transports studio analog warmth and inspiring playability to the stage.

Unlike standard compression that can squash the entire range of your signal, the Session’s Comp EQ features 3 narrowly focused bands of compression that tame common problematic frequencies and uncover the voice of your guitar. The low, mid, and high frequency compressors are essentially “touch-sensitive” EQs that respond in real-time to your dynamics. The harder you strum, the more they compress and vice versa.

   Specifikationer:
•  Analog saturation enhances warmth and harmonic content
•  Compression / EQ smoothes out common problem frequencies
•  Adjustable gain for both passive and active pickups
•  9V battery, or 9V DC powering options
•  Engage footswitch for affected signal or true bypass
•  Volume level control
•  ¼" output

LRAlign-SE   Align SESSION DI Pedal    Pris: 2.495:-

Proprietary Reverb Tailored Specifically
For Acoustic Instruments

The Align Reverb was built from the ground up to complement the natural body dynamics and warmth of acoustic instruments that we love so much. The circuit seamlessly integrates the wet and dry signals with the effect in side chain so that it never overwhelms the original signal. We shaped the reverb with analog EQ to reflect the natural voice inherent in acoustic instruments. Additionally, the tone control adds versatility by sweeping from warm and muted to open and present. The result is an organic reverb that maintains the audiophile purity of the original signal with the controls set in any position.

   Specifikationer:
•  Reverb control blends reverb signal with unaffected signal
•  Decay adjusts the length of the reverb tail
•  Tone sweeps a wide range of warmth, clarity, and everywhere in between
•  9V battery, or 9V DC powering options
•  Engage footswitch for affected signal or true bypass
•  Volume level control
•  ¼" output

LRAlign-RE   Align REVERB Pedal    Pris: 2.495:-

ALIGN SERIES  DELAY

Proprietary Delay Tailored Specifically
For Acoustic Instruments

The Align Delay brings a classic effect to acoustic musicians by optimizing the signal for high-fidelity instruments. By expanding the range of your sonic profile while underlining your primary acoustic sound, the Delay augments both rhythm and melody for a larger dimensional sound and feel. We’ve combined the most desirable qualities of both analog and digital circuitry to create the best possible sound with the convenient features of a modern platform. The Tap button sets your desired tempo or the Tap Tempo input can be used with an external time control device. The Tone control only affects the repeats, ranging from warm and analog-like to clear, digital-like echo—for a versatile effect that can be tailored to fit any musical context.

   Specifikationer:
•  Delay Control blends delayed signal with unaffected signal
•  Repeats controls the total number of repeats
•  Time sets the time between the original and repeated signal
•  Division sets delay to dotted eighth note of current tempo
•  Tap manually sets the delay tempo
•  Tap Tempo Input allows for the connection of an external
   tap tempo footswitch
•  Tone sweeps a wide range of warmth, clarity, and everywhere in between
•  9V battery, or 9V DC powering options
•  Engage footswitch for affected signal or true bypass
•  ¼" output

LRAlign-DE   Align DELAY Pedal    Pris: 2.495:-

ALIGN SERIES  CHORUS

Proprietary Chorus Tailored Specifically
For Acoustic Instruments

In the same way a choir enhances the foundation of a melody, the Align Chorus complements your acoustic guitar rather than placing the effect in the limelight. With the purity of LR Baggs’ circuitry and the effect in side chain, the Chorus adds fullness behind your guitar without any signal degradation. We designed the pedal with simple and intuitive controls that help you dial in a pleasing effect quickly and easily. A unique Size control blends two chorus voicings that interact with one another as you turn the knob. It’s essentially like adding more instruments as you increase the size. Additionally, a Tone control shapes only the affected signal, enabling you to dial in the perfect balance for your instrument.

   Specifikationer:
•  Chorus control blends chorus signal with unaffected signal
•  Size blends between two chorus voicings
•  Tone sweeps a wide range of warmth, radiance, and everywhere in between
•  9V battery, or 9V DC powering options
•  Engage footswitch for affected signal or true bypass
•  Volume level control
•  ¼" output

LRAlign-CH   Align CHORUS Pedal    Pris: 2.495:-

GIGPRO

Gigpro är en 1-kanals preamp med bältesclip som går att använda med de flesta pick-uper.
Den har 2 bands EQ, low cut och volymkontroll. Den erbjuder även fantommatning för mini-mikrofoner.

Sammanfattning:

•  Justerbar Gain

•  Passiv 2-bands EQ

•  Bass trim control

•  Fas switch

•  9V Fantom matning

•  LED lampa för battericheck

Specificationer:

Storlek: 121 x 72 x 32 mm
Vikt: 188 g
Batteri: 9 V
Batteritid: 300+ timmar
Gain: +6dB till +28dB
Input Impedance: 10 megaohm
Output Impedance: 800 ohm

LR GIGPRO   1-kanals Preamp   Pris: 1.795:-

MIXPRO

Gigpro är en 2-kanals preamp/mixer med bältesclip. Den ger möjlighet att kombinera två pick-up system/mini-mik av nästan vilken sort som helst. Den har 2 bands EQ, low cut och volymkontroll. Den erbjuder även fantommatning för mini-mikrofoner.

Sammanfattning:

•  Justerbar Gain för båda kanaler

•  Passiv 2-bands mix EQ

•  Bass trim control

•  Fas switch

•  9V Fantom matning för båda kanaler

•  1/4” stereojack in, 1/4” monojack ut

Specificationer:

Storlek: 121 x 72 x 32 mm
Vikt: 188 g
Batteri: 9 V
Batteritid: 200+ timmar
Gain: +6dB till +28dB
Input Impedance: 10 megaohm
Output Impedance: 800 ohm

LR MIXPRO  2-kanals Preamp/Mixer  Pris: 2.595:-
